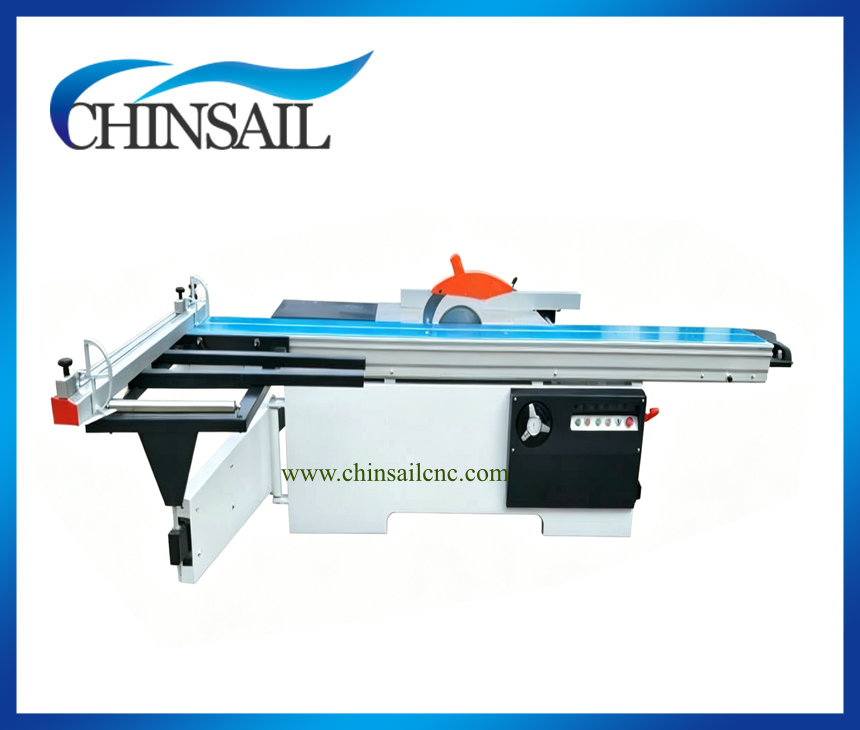

3m 3.2m 45 90 Degree Sliding Table Saw Panel Saw Machine
Woodworking Use Slide Table Panel SawWe also accept customizaton. Include the outlook of the machine.Voltage also can be customzied.
Send inquiry
No.1 Features of sliding table saw has been upgrade:
1) Double Pushing Bench.
2) The connection base of the fuselage and the platform is all planed and planed, which improves the accuracy of the platform.
3) The bearings were replaced with SKF bearings in Sweden, which solved the problem of the saw-shaft heating noise.
4) The cast iron working table standard with protection saw blade ensures that the saw blade will not be damaged by touching the cast iron bench during the lifting process.
5) The machine standard adds a dust cover and a pusher.
6) Added German technology high-end saw blade.
7) The mold column is upgraded to chromium plating without rust.
8) The board of guiding rule is upgrade.
9) The positioning slot of the platform will be increased, and the displacement of the platform will not occur during transportation.
10) Before the machine is out of the factory, the precision of 20 silk is adjusted. After the customer receives it, simple installation can be used.
No.2 Application
Woodworking Use Slide Table Panel Saw
No.3 Parameters
| Mode | Parameter | Mode | Parameter |
| Dimensions sliding table | (1600-4200)×325/375mm | MAX. Cutting length | 1600-4200mm |
| MAX. Cutting width | 1250mm | Max. Cutting Thickness | 80mm |
| Max. Cutting Thickness at 45 | 60mm | Saw blade Diameter | 300 mm / 30mm |
| Scoring saw blade diameter | 120 mm /20mm | Main saw spindle speed | 4000-6000 rpm |
| Scoring saw spindle speed | 7000-8000 rpm | Main saw shaft diameter | 30mm |
| Motor power | 4+0.75kw(5.5+1.1KW) | Tilling saw blade | 90°/0-45° |
| Weight | 550-800kg | Overall dimensions | (1600-4200)x1100x1200mm |
No.4 Please leave your inquiry details in this below, then click Send now, you will get the best quotation.
| 1 | Sliding table size | 1600,2200,2800,3000,3200, 3800mm ? |
| 2 | Tilting saw blade | electric or manual? |
| 3 | Saw blade lifting | digital or pointer ? |
| 4 | Voltage | 220v, 60hz, single or three phase ? |
| 5 | Dust collector | with together or not ? |
